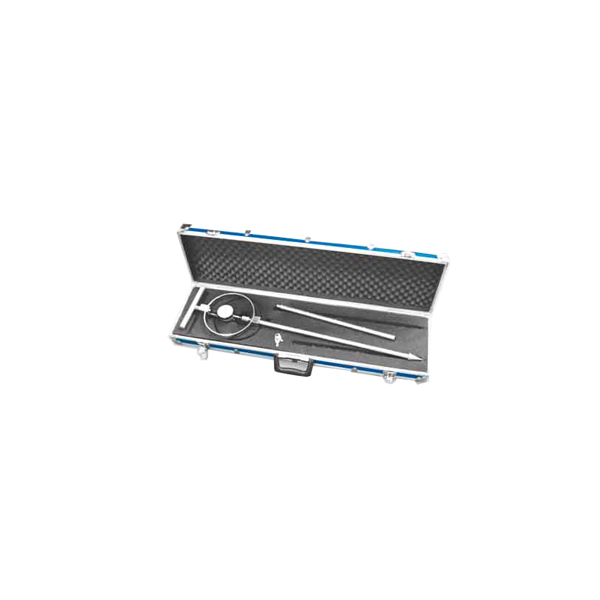

Proving Ring Penetrometer
Our Price
- The apparatus used to determine the bearing strength, compaction degree of sub grades and determining the penetration resistance of soil.
Code : NL 5012X/001
Ready to Ship
Description
Technical Specifications
| Standard | ASTM D1558 |
| Capacity | 1 kN |
| Case Dimension | 870 (L) x 250 (W) x 115 (H) mm |
| Approx. Weight | 6.7 kg |
Set Consists Of
| Model Number | Parts Description | Qty |
| NL 5012 X / 001 – P 001 | Proving Ring 1 kN with Conversion Chart | 1no. |
| NL 5012 X / 001 – P 002 | Penetration Rod | 1no. |
| NL 5012 X / 001 – P 003 | Extension Rod | 1no. |
| NL 5012 X / 001 – P 004 | Penetration Cone 30° Angle | 1no. |
| NL 5012 X / 001 – P 005 | Steel Handle | 1no. |
For detailed specifications refer to the Product Brochure.
NL Scientific
Proving Ring Penetrometer
The apparatus used to determine the bearing strength, compaction degree of sub grades and determining the penetration resistance of soil.
