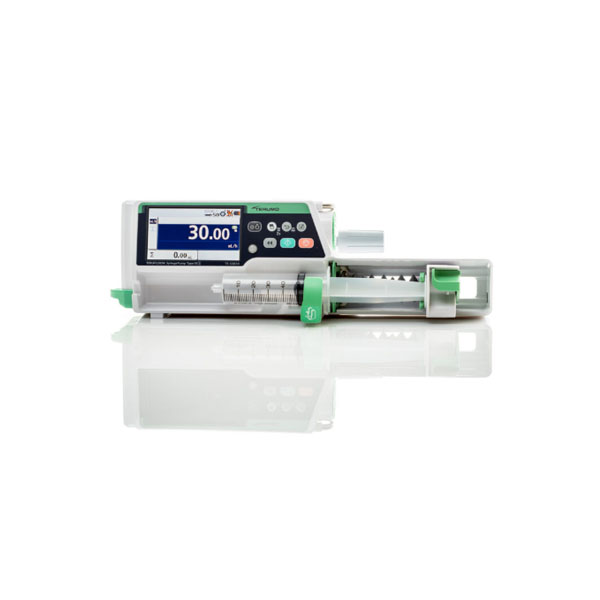

Pump Syringe, Smart, TE-SS-835-N-02
Our Price
- Weight: Approx. 2.0kg
- Flow Rate Setting: 0.01 to 150.00 mL/h
- Alarms: Upper Occlusion alarm, Lower Occlusion alarm, Nearly Empty alarm, Air-in-line alarm, Anti-free Flow Clip alarm, Door alarm, Flow Rate Abnormality alarm, Free Flow alarm
- Power Supply: AC100 to 240V, 50 to 60Hz
- Battery: Lithium-ion battery
- Charging time: ≥ 8 hours
- Continuous used period: Approx.12hrs
- Communication Function: Communication with an external device via wireless LAN
This price is inclusive of 5% commercial tax.
Ready to Ship
Description
TCI mode
TCI (Target Controlled Infusion) can be performed with this product in the following five different combinations of drugs, models, and targets:
For Plasma TCI, Propofol (Marsh), Propofol (Schnider), and Remifentanil (Minto) are available.
For Effect-site TCI, Propofol (Schnider) and Remifentanil (Minto) are available.
Dose unit
The flow rate (mL/h) can be automatically calculated based on the dose units such as μg/kg/min. The calculated contents of the
flow rate can be checked on the screen.
Easy-to-read display
With a 4.3 inch (10.9 cm) colour LCD, clear and precise visibility has been achieved.
The operation indicator allows the operation/stop/alarm status to be easily recognised.
The internal battery charge and level indicator is displayed on the LCD with 5 bars.
Additional safety functions
The keypad lock function disables any switch operations after being set to prevent any operational errors or inadvertent operations. (Except for Start switch, Power switch and Back/Mute switch (for operation to release the keypad lock).
User-friendly shape and structure
With its microSD™ card slot and expanded 3.7 GB of internal memory, eTrex 30x lets you load TOPO 24K orGarmin HuntView™ maps and hit the trail, plug in BlueChart® g2 preloaded cards for a great day on the water or City Navigator NT map data for turn by-turn routing on roads. eTrex 30x also supports BirdsEye Satellite Imagery (subscription required), that lets you download satellite images to your device and integrate them with your maps.
Share Wirelessly
With a unit weight of approx. 2.0 kg, the carrying burden is reduced, and allows for stable installation with the pole clamp included.
The rounded-cornered body is easy to clean even when drug solution has adhered.
Dual power supply system
Dual power supply system with AC power and internal battery
The internal battery can provide approx. 8 hours of continuous operation for solution delivery at a flow rate of 5 mL/h at temperature of 25°C, with a fully-charged new battery.
The internal battery can be charged to approx. 80% in 3 hours.
The sub-battery is used for a Power Failure alarm in case both power supplies are lost
Physical & Performance
| Model | TE-SS835 |
| Type of device | Syringe pump |
| Classification & compliance to standards |
Class I and internally powered equipment, Defibrillation-proof type CF applied part (according to IEC/EN 60601-1) Class IIb medical device (according to Council Directive 93/42/EEC) IEC/EN 60601-1-2, IEC/EN 60601-2-24 |
| Protection against harmful ingress of water or particulate matter |
IP 24 |
| Dimensions / Weight | TE-SS730/SS830/SS835: 381 mm (W) x 120 mm (H) x 112 mm (D), approx. 2.0 kg TE-SS732: 381 mm (W) x 120 mm (H) x 131 mm (D), approx. 2.0 kg |
| Compatible disposables | Luer lock syringes (TERUMO and other specified brands) Sizes: 5, 10, 20, 30, 50/60 mL |
| Flow rate setting range | 0.01 – 150 mL/h (for 5 mL syringes) 0.01 – 300 mL/h (for 10, 20 and 30 mL syringes) 0.01 – 1200 mL/h (for 50/60 mL syringes) |
| Free flow protection | N/A |
| Power supply | AC 100-240V, 50-60 Hz, Internal battery (Lithium ion battery), Sub-battery (NiMH) |
| Main battery operating time | Approx. 12 hours (at 5 mL/h and 25°C with a new fully charged battery) |
| Main battery recharging time | ≥8 hours (when charged with AC power supply with the power tur ned off), battery can be charged to 80% in 3 hours |
| External communication function | IrDA and Wireless LAN (IEEE802.11b) (IEEE802.11b/g/n only on TE-SS835) |
For detailed specifications refer to the Product Brochure.
TERUMO JAPAN
Pump Syringe, Smart, TE-SS-835
Terumo’s Terufusion Advanced Infusion System offers accurate, reliable and innovative syringe and volumetric infusion pumps, without putting an extra burden on healthcare professionals. We combine sophisticated technologies with stress-free, easy-to-use functionalities to facilitate them to pursue the best patient outcomes.
