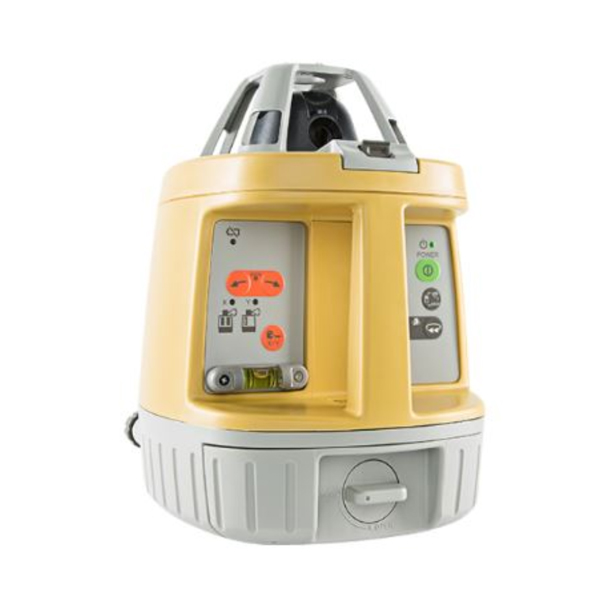

Level, Rotating Laser RL-VH4DR (3137.5110.2)
Our Price
- Topcon Rotating Laser Level(Water Proof)
- Model : RL-VH4DR (Rotating Laser)
- Country of Origin : Made in Japan
The price is inclusive of 5% Tax.
Email when stock available
Description
Physical & Performance
| Horizontal | ±20° |
| Vertical | ±20° |
| Auto Levelling Range | ±5° |
| Accuracy | ±10” (1mm/20m) |
| Measuring range (Diameter) | 300 m |
| Rotation speed | 300 r.p.m |
| Scanning Range (Diameter) | 2 m (6.6 ft) to 60 m (179 ft) |
| Light Source | Diode red laser (635nm) |
| Power Supply | 4 × D Size dry cell Batteries |
| Continuous Operating time | 4 × D Size dry cell Batteries (alkaline ) 30 h |
| at + 20° C (+68°F) | Ni-MH battery pack BT – 63 Q (65 h) |
| Tripod screw | Flat and Dome head Type W5”/8X11 threads |
| Operating temperature | -20°C to +50°C (-4°F to +122°F) |
| Protection Against | IP 54 |
| Dimensions | 182 (L)x167 (W)x241.5(H)mm (7.2 x 6.6. x 9.5 in) |
| Weight (Dry battery type) | 2.4kg [5.3 lbs] (Including dry cell batteries) |
For detailed specifications refer to the Product Brochure.
TOPCON
RL-VH4DR, Rotating Laser
Topcon Rotating Laser Level(Water Proof)
Model : RL-VH4DR (Rotating Laser)
Country of Origin : Made in Japan
