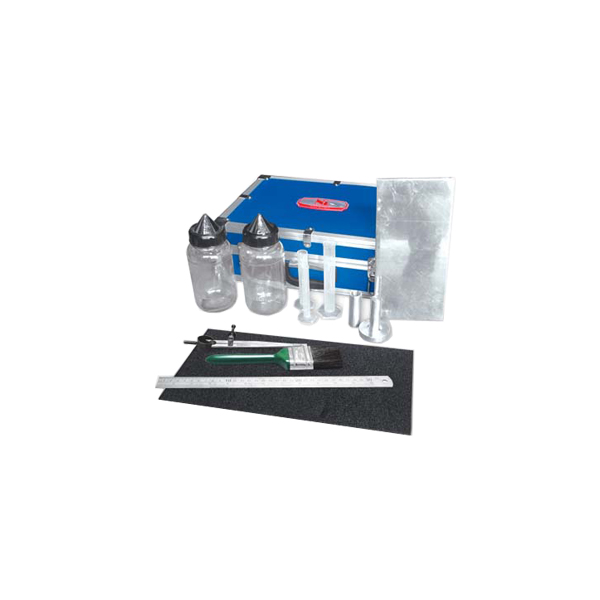

Sand Patch Apparatus
Our Price
This test is performed spreading a measured volume of fine sand (ASTM) or glass spheres (EN) into a circular patch on the road surface and filling the surface depressions to the level of the peaks.
Code : NL 2022 X / 001
Ready to Ship
Description
Technical Specifications
| Standard | BS 598-105, ASTM E965, CNR No.94, NF P98-216-1 |
| Dimension | 350 (L) x 220 (W) x 200 (H) mm |
| Approx. Weight | 4 kg |
Unit Consists Of
| Model Number | Parts Description | Qty |
| NL 2022 X / 001 – P 001 | Aluminum Measuring Cylinder | 1no. |
| NL 2022 X / 001 – P 002 | Sand Spreader Disc with Surface Covered by Rubber | 1no. |
| NL 2022 X / 001 – P 003 | Screw-Adjusted Dividers | 1no. |
| NL 1007 X / 001 – P 003 | Pyknometer | 2nos. |
| NL 2022 X / 001 – P 004 | Wind Shield | 1no. |
| NL 2022 X / 001 – P 005 | Kneeling Pad | 1pck. |
| NL 2022 X / 001 – P 006 | Carrying Case | 1no. |
| NL 7000 G / 001 | Plastic Measuring Cylinder 10 ml Cap | 1no. |
| NL 7000 G / 002 | Plastic Measuring Cylinder 25 ml Cap | 1no. |
| NL 7000 G / 003 | Plastic Measuring Cylinder 50 ml Cap | 1no. |
| NL 7014 X / 001 | Nylon Soft Brush – 2’’ | 1no. |
| NL 7055 X / 003 | Steel Ruler 300 mm Length | 1no. |
Optional Accessories
| Model Number | Accessories Description |
| NL 2022 X / 001 – A 001 | Solid Glass Spheres 250 / 180 µm EN13036-1 (Pack of 5 kg) |
| NL 2022 X / 001 – A 002 | Natural Sand 300 / 150 µm ASTM E965 (Pack of 10 kg) |
| NL 2022 X / 001 – A 003 | Natural Sand 150 / 75 µm ASTM E965 (Pack of 10 kg) |
For detailed specifications refer to the Product Brochure.
