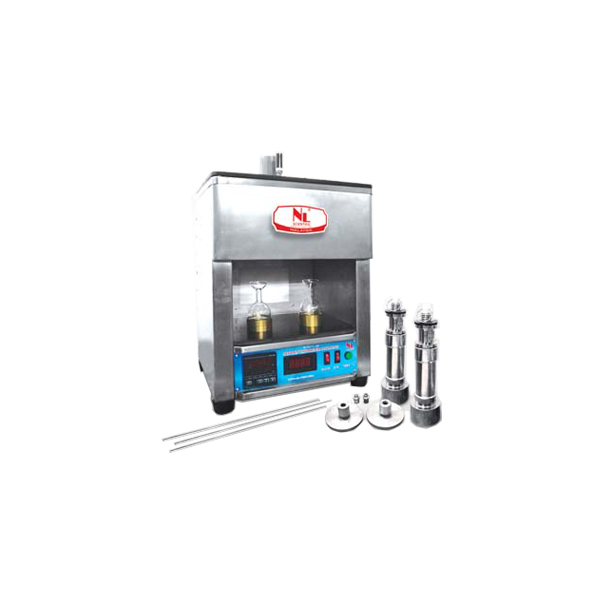

Saybolt Viscometer Apparatus
Our Price
Used to determine the saybolt viscosities of petroleum products at the required temperatures between 70°F to 210°F (21.1°C to 98.9°C).
Code : NL 2027 X / 001
Ready to Ship
Description
Technical Specifications
| Standard | ASTM D88, AASHTO T72 |
| Dimension | 270 (L) x 270 (W) x 550 (H) mm |
| Approx. Weight | 15 kg |
| Power | 240 V, 1 ph, 50 / 60 Hz |
Unit Consists Of
| Model Number | Parts Description | Qty |
| NL 2027 X / 001 – P 001 | Viscometer Probe | 2nos. |
| NL 2027 X / 001 – P 002 | Furol Orifice | 2nos. |
| NL 2027 X / 001 – P 003 | Universal Orifice | 2nos. |
| NL 2027 X / 001 – P 004 | Flask Pedestal | 2nos. |
| NL 2027 X / 001 – P 005 | Temperature Sensor Probe | 1no. |
| NL 2027 X / 001 – P 006 | 60 ml Saybolt Viscocity Flask | 2nos. |
Optional Accessories
| NL 2027 X / 001 – A 001 | Saybolt Thermometer ASTM 17C, 19°C to 27°C X 0.1°C |
| NL 2027 X / 001 – A 002 | Saybolt Thermometer ASTM 18C, 34°C to 42°C X 0.1°C |
| NL 2027 X / 001 – A 003 | Saybolt Thermometer ASTM 19C, 49°C to 57°C X 0.1°C |
| NL 2027 X / 001 – A 004 | Saybolt Thermometer ASTM 20C, 57°C to 65°C X 0.1°C |
| NL 2027 X / 001 – A 005 | Saybolt Thermometer ASTM 21C, 79°C to 87°C X 0.1°C |
| NL 2027 X / 001 – A 006 | Saybolt Thermometer ASTM 22C, 95°C to 103°C X 0.1°C |
| NL 2027 X / 001 – A 007 | Filter Funnel |
| NL 2027 X / 001 – A 008 | Withdraw Tube |
| NL 2027 X / 001 – A 009 | Bath Oil(5 litres) |
For detailed specifications refer to the Product Brochure.
