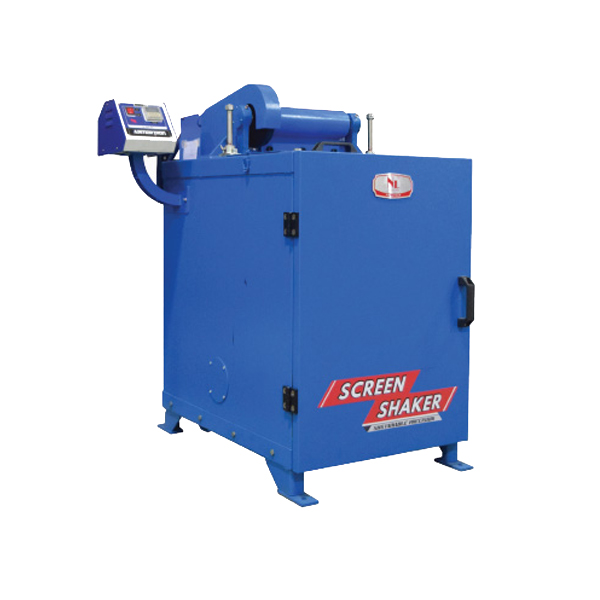

Screen Shaker (Door Type)
Our Price
- High capacity screening for large sample. Ideal for determination of crushed stone, sand and gravel.
- Sample are quickly processed into as many as seven separation in a litres as tree to five minutes.
- Typical batch sizes up to one cubic foot (0.028 m³) or more vary with material type .
- Mechanical clamping are easily secured in place by a few quick strokes.
- (The unit come with supporting backup clutch for tray and hooked for tensioning finer sizes screening)
Ready to Ship
Description
Technical Specifications:
| Standard | ASTM C-136, EN 933-2, ISO 3310-2 |
| Tray Capacity | 7 Trays Included Dust Pan |
| Screen Tray Dimension | 870 (L) x 570 (W) x 1120 (H) |
| Power | 240 V, 50/60 Hz, 1 ph, 750 W, 1hp 4.5 A, 1500 RPM |
| Approx. Weight | 100 kg |
Technical Specifications:
| Model Number | Parts Description | Qty |
| NL 1018 X / 001 – P 001 | Dust Cover | 1no. |
| NL 1018 X / 001 – P 003 | Tool Kit Set | 1set. |
| NL 1018 X / 002 – P 001 | Tray (without mesh) | 6nos. |
| NL 1018 X / 002 – P 002 | Dust Pan | 1no. |
| NL ADC 100 | Armortron Controller c/w Mounting Bracket | 1no. |
For detailed specifications refer to the Product Brochure.
NL Scientific
Screen Shaker (Large Capacity)
High capacity screening for large sample. Ideal for determination of crushed stone, sand and gravel. Sample are quickly processed into as many as seven separation in a litres as tree to five minutes. Typical batch sizes up to one cubic foot (0.028 m³) or more vary with material type .Mechanical clamping are easily secured in place by a few quick strokes. (The unit come with supporting backup clutch for tray and hooked for tensioning finer sizes screening)
