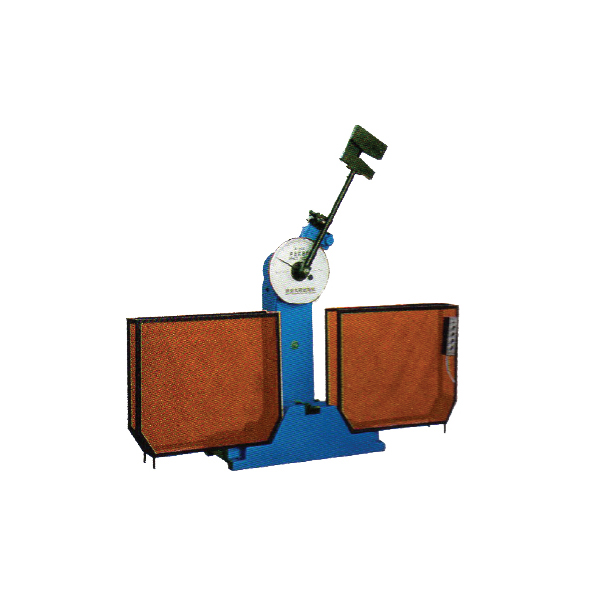

Semi Automatic Pendulum Impact Tester (Charpy Tester)
Our Price
- This machine is mainly used to determine the anti-impact capability of ferrous metal with high toughness especially for steel and iron and hteir alloy, under dynamic load.
- Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
Ready to Ship
Description
Technical Specifications:
| Model Number | NL 6002 X / 002 |
| Testing Material | Steel |
| Impact Energy | 500J |
| The distance between the pendulum shaft and impact tester. | 8000 mm |
| Impact Speed | 5.4 m/s |
| Pre-rising angle of the pendulum | 150° |
| Specimen bearer span | 40 mm |
| Round Angle Of The Jaw | R1-1.5 mm |
| Impact Cutter Radius | R2 – 2.5 mm |
| Standard full size specimen | 10 x 10 x 55 mm with V notch in the middle |
| Dimension (LxWxH) | 2200x650x1960 mm |
| Weight | 550 kg |
| Power | 415 V, 3 Ph, 2 Kw, 50/60 Hz |
For detailed specifications refer to the Product Brochure.
NL Scientific
Semi Automatic Pendulum Impact Tester (CHARPY TESTER)
This machine is mainly used to determine the anti-impact capability of ferrous metal with high toughness especially for steel and iron and their alloy, under dynamic load. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
