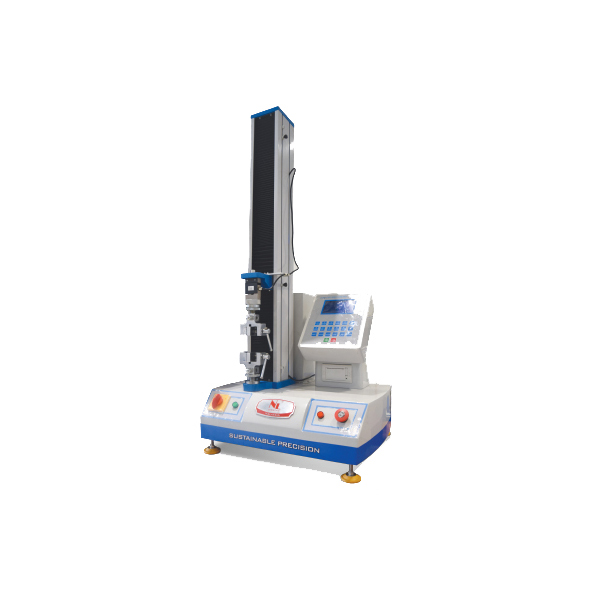

Servotec Fully Automatic Universal Tensile Machine 2kN
- NL Servotec Fully Automatic Universal Tensile Machine out tester adopts DC speed regulating servo motor & reduction gears as the power source.
- It real time displays test data & test status with LCD module.
- Professional designed servo control system realizes the PWM pulse width modulation control mode.
- It really comes up to with test speed closed loop control mode.
- It is controlled by single chip automatically control.
Description
Main Use & Range
Used for measurement & test of mechanical property & analytical study of metal, non-metal & composite material, such as aviation, petrochemical, machinery manufacture, wire, cable, textile, fiber, plastic, rubber, ceramic, food, medicine packaging, aluminium plastic tube, plastic door & window, geo-textile, film, wood, paper, metal material & manufacture industry & etc.
It can record the max. test force, fracture value, yield value, max. compression value automatically. It can also calculate the fracture extension & all kind of strength value manually. The RA232 connector can do the function of communicating with computer to do the data work. It is a essential equipment for manufacture, construction unit, product quality supervision & inspection bureau & building material test department. It also could be used in the university for teaching purpose.
Main Technical Parameters :
| Model Number | NL 6000 X / 022 |
| Max Test Force | 2 kN |
| Structure Type | Single Rigid Column With Single High Precision Ball Screw ( Desk Top Version ) |
| Max. Store | 900 mm |
| Max. Width (Space) | 150 mm |
| Test Force Accuracy | Class 1 (±0.5%) |
| Test Speed Range | 0.01 – 500mm/min |
| Load Resolution | 1/250 000 |
| Measuring Range | 1% – 100% F . S |
| Load Reading | Gf, kgf, N, kN, Lbf, etc. |
| Curves Display | Load/Elongation, Elongation/Time, Time/Elongation, Stress/Strain. |
| Data Display | Max. Force, Speed, Specimen Detail, Strength(Kpa, Mpa, N/mm, Nmm ) |
| Main Drive Unit | Panasonic Servo Drive & Servo Motor |
| Software | NL TM2101 |
| Safety Feature | Emergency Stop, Over Load Protection, Upper & Lower Limit Switch
Load Sensor with Auto Retreat. |
| Power Source | AC 220 V, 1Ph, 50/60 Hz |
| Dimension ( L x W x H ) | 640 x 650 x 1470 mm |
| Approx Weight | 120kg |
For detailed specifications refer to the Product Brochure.
NL Scientific
Servotec Fully Automatic Universal Tensile Machine 2kN
NL Servotec Fully Automatic Universal Tensile Machine out tester adopts DC speed regulating servomotor & reduction gears as the power source. It real time displays test data & test status with LCD module. Professional designed servo control system realizes the PWM pulse width modulation control mode. It really comes up to with test speed closed loop control mode. It is controlled by single chip automatically control.
