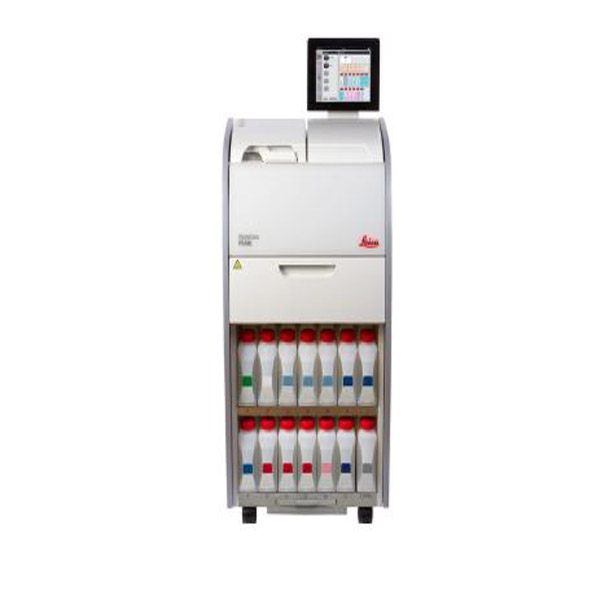

HistoCore Pearl ,Tissue Processor
- The HistoCore PEARL tissue processor combines a compact design with the essential features needed in the laboratory: User safety and ease-of-use.
- This fully enclosed tissue processor provides high-end reliability with a new retort design, and allows safe and reliable conventional processing with a 200 cassette per run capacity.
- Maximize your laboratory space with the small footprint of the HistoCore PEARL tissue processor.
Description
Ultimate Protection for User Safety
• Fully enclosed system
• Triple Fume Protection: extraction at the retort, an external exhaust adapter and an activated carbon filter provide added safety for lab staff
Ultra-Compact Solution
• 200 cassette capacity
• Small footprint to maximize laboratory space
• 3.5L reagent bottles and three paraffin baths help maximize run efficiency
Simple Operation
• Easy-to-remember operating procedures on xylene resistant, multi-lingual touch screen interface
• Three pre-validated protocols and Reagent Management System (RMS) provides added flexibility
• USB connection to download log files help maintain accurate records Easy-to-Clean Paraffin and Reagent Exchanges
• Drawer style design for paraffin baths allows for
easy filling and draining
• Trays under the paraffin baths and reagent bottles
effectively collect spilled liquids/chemicals
Product Specification
| Nominal supply voltages | 100 to 120 V AC or 220 to 240 V AC |
| Nominal frequency | 50 / 60 Hz |
| Nominal power | 1650 VA |
| Operating temperature range | +10 °C to +35 °C |
| Capacity | Max. 200 cassettes |
| Temperature (paraffin) | 50 °C to 70 °C |
| Temperature (processing reagents) | Ambient temperature or 35 °C to 60 °C |
| Temperature (cleaning reagents) | Alcohol 62 °C, Xylene 67 °C |
| Number of paraffin baths | 3 |
| Capacity | Max. 3.5 L per paraffin bath |
| Melting time | 50 °C to 64 °C, 12 hours |
| Temperature setting range | 50 °C to 70 °C |
| Number of reagent bottles | 11 (in reagent cabinet) |
| Condensate bottle | 1 |
| Cleaning solution bottles | 2 |
| Bottle volume | Max. 3.5 L |
| Dimensions, unpacked (W x D x H) |
600 x 710 x 1320 mm (23.62 x 27.95 x 51.96 in) |
| Weight, unpacked | Max. 140 kg (308.65 lbs) |
| Weight, packed | Max. 175 kg (385.81 lbs) |
For detailed specifications refer to the Product Brochure.
Leica
Histocore Pearl Tissue Processor
The HistoCore PEARL tissue processor combines a compact design with the essential features needed in the laboratory: User safety and ease-of-use. This fully enclosed tissue processor provides high-end reliability with a new retort design, and allows safe and reliable conventional processing with a 200 cassette per run capacity. Maximize your laboratory space with the small footprint of the HistoCore PEARL tissue processor.
