Retinal Camera, Non-Myd, TRC-NW-400 w/R4 LitePCAIT16T-Top
Our Price

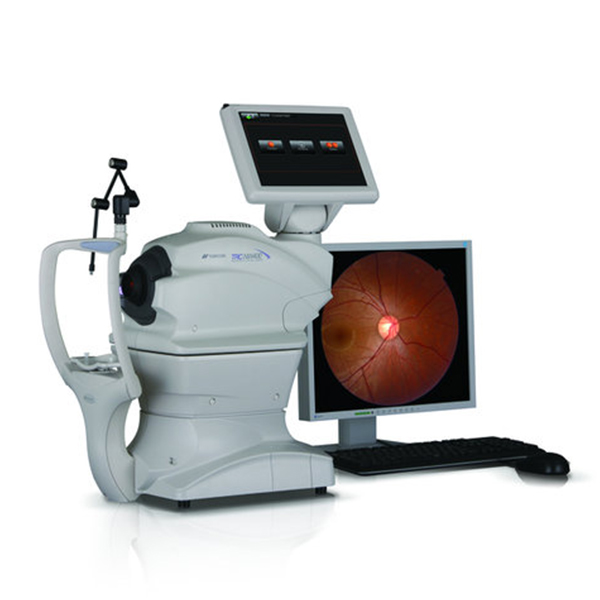

With the new TRC-NW-400 non-mydriatic fundus camera Topcon enters a new area.
An area where easy operation, an extreme small footprint and superb images are key issues.
- True Colour images
- Small Pupils
- Stereo Photography
- Space saving design
- User friendliness
- Direct DICOM
Email when stock available
Description
- Fully automated operation and automatic transfer from eye to eye
- 10” touch screen monitor for instrument control and image display
- Auto stereo feature does not require manual movement of the optical head
- Anterior segment photography
- 9 internal LED fixation targets
- DICOM compliant
- Can work as a standalone device or in combination with capture software
Physical & Performance
| Angle of coverage | 45°/30° or equivalent (digital zoom) |
| Working distance | 34.8 mm (in fundus photography) |
| Pupil diameter for photography | 45°: Ø 4.0 mm or more Small pupil diameter: Ø 3.3 mm or more |
| Fixation target | Internal fixation target: – Dot matrix type organic EL – The display position can be changed and adjusted – The displaying method can be changed Peripheral fixation target: – This is displayed according to the internal fixation – Target displayed position |
| Without the diopter compensation lens | -13D to +12D |
| When the concave compensation lens is used | -12D to -33D |
| When the convex compensation lens is used | +11D to +40D |
| Source voltage | AC 100 – 240V |
| Power input | 120VA |
| Frequency | 50Hz – 60Hz |
| Dimensions | 272 – 383 mm (W) × 464 – 660 mm (D) × 512 – 700 mm (H) |
| Weight | 18 kg |
For detailed specifications refer to the Product Brochure.
TOPCON
TRC – NW 400
In manual mode, the user can operate the camera using the touch screen the same as the control lever. This is particularly useful in cases where auto mode is not possible or a specific area of the fundus
Out Stock
