Retinal Camera, Myd/Non-Myd, TRC-NW-8-F w/ IMAGEnet Pro LITE FA/Auto Mosaic soft
Our Price
The Topcon TRC-NW8F easy-to-use, auto focus, auto capture … color and monochrome images of the retina and the anterior segment of the human eye.
- Multi Functional Retinal Camera
- Lower Flash Intensity
- Easy to Use
- Continuous Shooting Function
- Auto Focus & Auto Shoot
- Auto Small Pupil Detection
- Compact Design
Ready to Ship
Description
- Versatile and economical full function retinal camera with color, red free and FA capabilities
- Auto focus and auto capture
- Intelligent software prevents mistakes and insures correct capturing in any mode
- Tri-functional fully digital retinal camera
- 16.2 megapixel resolution
- Optical red-free function
- 9 internal fixation targets for image consistency when composing wide-field views
- 45 years of experience in manufacturing retinal cameras
Physical & Performance
| Angle of coverage | 45° |
| Working distance | 40.7 mm |
| Pupil diameter for photography | φ4.0mm or more φ3.3mm or more when the small pupil diaphragm is used |
| Type of photography | Colour photography, Red-free photography, FA photography and FAF photography |
| Patient dioptre correction range | Without correction lens: -13D to +12D (where split lines are used) With minus correction lens: -33D to -12D With plus correction lens: +9D to +40D |
| Auxiliary function for photography | Auto focus function (Used only in the split line working range. This can be turned ON/OFF) |
| Fixation Target | Internal / External fixation target can be selected Internal fixation target Centre / Periphery Right / Left eye automatic detection Optional position presetting function |
| Base movement | Back & forth: 46 mm, Right & left: 100 mm, Up & down: 30 mm |
| Chinrest movement | 67 mm |
| Power source | Frequency: 50/60 Hz Voltage: AC100-240V |
| Weight | 23.5 kg (TRC-NW8/TRC-NW8F), 23.8 kg (TRC-NW8F plus) |
| Dimensions | 274(W) X 508(D) X 536-566(H) mm |
| Power consumptions | 400VA (Maximum), 100VA (Normal) |
For detailed specifications refer to the Product Brochure.

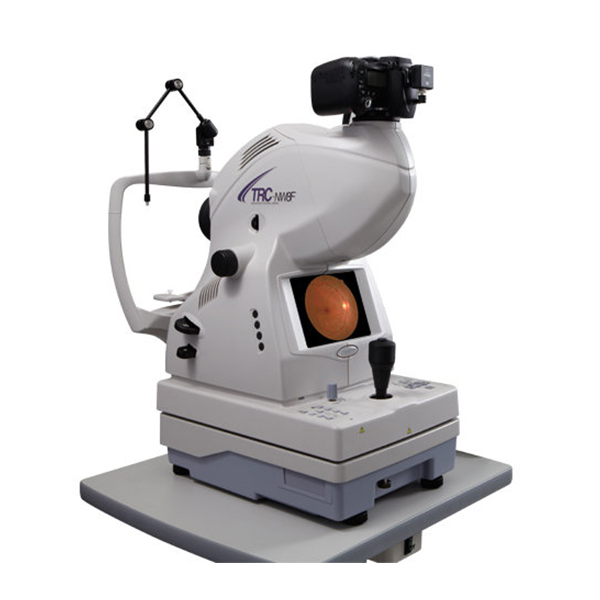

TOPCON
TRC – NW 8F
TRC-NW8 series is Topcon’s multi-functional retinal camera which is focused on “simple operation”. With our experience in the production of retinal cameras, we have been able to bring all of the benefits of our non mydriatic camera to this brand new multi functional camera. The ability of Auto Focus and Auto Shoot makes the operation of this camera extremely simple and user friendly. Still allowing manual override when required.
