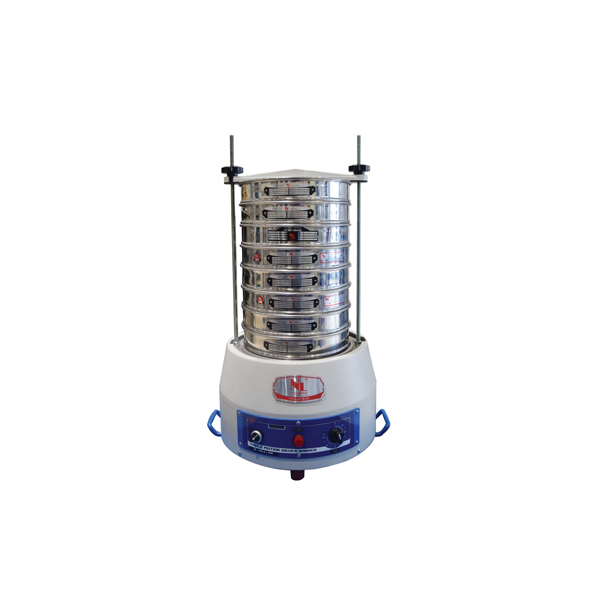

Triple Motion Sieves Shaker
Our Price
- Newly invented product by NL. Reliable and long lasting, simple sturdy construction.
- Category : Aggregate & Rock Testing Equipments
- Code : NL 1015 X / 010
Ready to Ship
Description
- Triple vibration action (vertical, lateral and rotational)
- Quick clamping & release mechanism hand knob
- Portable control unit to avoid vibrating damaged
- Low noise pollution
Technical Specifications
| Model Number | NL 1015 X / 010 |
| Acommodates | *11 nos 200 mm / 8” Dia. Full Height Sieves plus lid and receiver *9 nos 300 mm / 12” Dia. Full HeightSieves plus lid and receiver |
| Timer | 1 – 60 min |
| Approx. Product Dimension | 540 (L) x 460 (W) x 1230 (H) mm |
| Approx. Weight | 53 kg |
| Power | 220 V, 1 ph, 1/3 Hp, 50 / 60 Hz,375W |
Unit Consists Of
| Model Number | Parts Description | Qty |
| NL 1015 X / 006 – P 009 | Quick Release Knobs (pair of 2) | 1pr. |
| NL 1015 X / 006 – P 002 | Clamping Beam | 1no. |
| NL 1015 X / 006 – P 003 | Threaded Column Set (pair of 2 included nut & spring washer) | 1pr. |
Optional Accessories
| Model Number | Parts Description |
| NL 1015 X / SPC | Noise Reduction Cabinet |
For detailed specifications refer to the Product Brochure.
