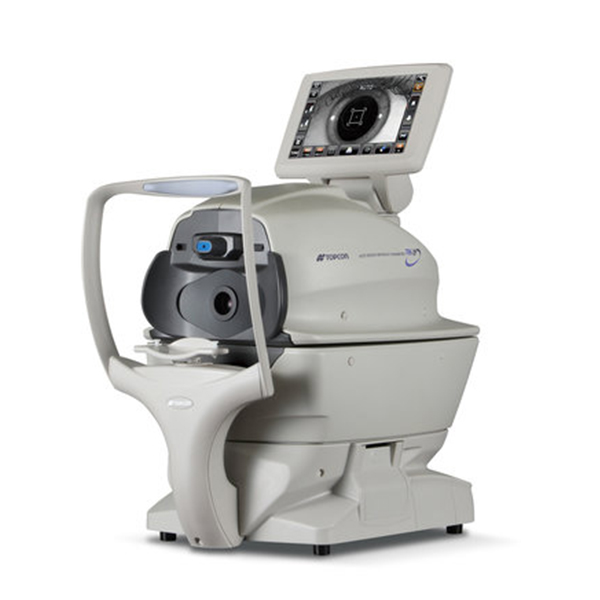

Kerato-Refracto-Tonometer, Auto, TRK-2-P, 4-in-1
The TRK-2P is a unique 4 in 1 instrument. With a single touch of a fingertip on the rotatable control touch panel, not only Refract-Keratometry is measured but also Tono-Pachymetry.
Cataract mode
The TRK-2P has a built-in function that allows measurement of patients who have a cataract or an opacity. This function works automatically or manually.
Soft air-puff
Improved nozzle design and software control the optimal amount of air required for every IOP measurement. A softer air puff improves patient comfort and results in an improved measurement experience.
Adjusted IOP based upon pachymetry
The built-in pachymeter function can be used to adjust the measured IOP value, depending on the cornea: if it is thicker or thinner than average. The integrated formula for IOP adjustment can be customized by the eye care practitioner.
Description
- Refraction, keratometry, tonometry and pachymetry measurements all in one instrument!
- Fully automated measurement process for increased efficiency
- Seamless interface to CV-5000 vision tester
- Flexible layout and space saving design
- 8.5” Color rotatable monitor
- Easy-to-use color touch panel
- Comfortable design for patients
- Built-in printer with auto paper cutter
Product Specifications
| Measuring range | Spherical refractive power : -30D to +25D (0.12D/0.25D steps)* Cylindrical refractive power: 0D to ±12D (0.12D/0.25D steps)* Direction of astigmatic axis:0° to 180° (1°/5° steps) |
| Minimum measurable pupil diameter | ø 2.0mm |
| PD measurement range | 20 to 85mm (0.5mm step) |
| Target fixation | Auto fog system |
| KRT measurement | Cornea curvature radius: 5.00mm to 13.00mm (0.01mm step) Corneal refractive power: 67.50D to 25.96D (0.12D / 0.25D steps) (where, corneal refractive power =1.3375D) Corneal astigmatic power: 0D to ±12D (0.12D / 0.25D steps) Direction of corneal astigmatic axis: 0° to 180° (1°/5° steps) |
| Ocular pressure measurement | 1 to 60mmHg (1mmHg step) |
| Cornea thickness measurement | 0.400mm to 0.750mm (0.001mm step) |
| Chinrest travel distance | up/down: 67mm |
| Dimensions | 293~396mm(W) x 505~601mm(D) x 470~682mm(H) |
| Weight | 22.0kg |
| Power supply | 100-240V AC, 50-60Hz, 100VA |
For detailed specifications refer to the Product Brochure.
TOPCON
TRK – 2P
The TRK-2P features a fully automated alignment and measurement system, combining an Auto-Refractometer, Keratometer, Non-Contact Tonometer and Pachymeter in one instrument. The compact size and rotating colour touch screen control panel offers total flexibility for the operator and also instrument location. The TRK-2P improves patient flow and practice efficiency.
