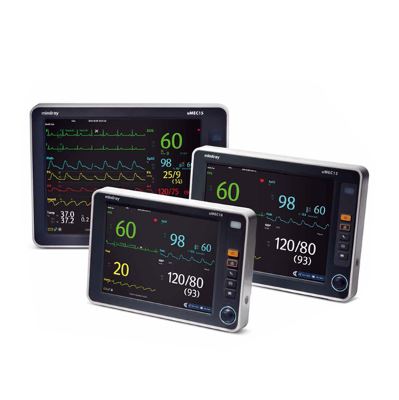

uMEC.12, Patient Monitor
- Mindray Basic Patient Monitor, 12 inches
- uMEC series patient monitors cater to clinical needs by offering precise and stable measurement of essential parameters.
- When monitoring is reliable, you can naturally be more confident with your clinical decisions.
Description
Advanced Performance
With Mindray’s 25-year experience in patient monitoring, uMEC series patient monitors cater to clinical needs by offering precise and stable measurement of essential parameters. When monitoring is reliable, you can naturally be more confident with your clinical decisions .
Easy to Use
As an user-friendly patient monitor, uMEC helps to simplify workflow and improve efficiency. The monitor provides very intuitive user interface to help faster and easier applications even for new users. Caregivers need less time for training, and get more time for patient care.
High Durability
To be effective in different environment, uMEC has passed strict electrical safety tests and reliability tests. It is extremely durable and has a long life span.
Technical Specifications
uMEC 12
| Monitor size | 345mm x160mm x 255mm |
| Weight | ≤4kg, Standard parameters configuration,including alithium batter and a recorder |
Display
| Type | uMEC10: 10.4” color LED uMEC12: 12.1” color LED |
| Resolution | 800 x 600 pixels |
| Waveforms | uMEC10: up to 7 uMEC12: up to 8 |
| External Display | 1 display through VGA |
Data Storage
| Trend data | 1200hrs (interval 10min), 120 hrs (interval 1 min), 4 hrs (interval 5 sec) |
| Alarm events | 1800 events and associated waveforms |
| Arr. events | 128 Arr. events and associated waveforms |
| NIBP | 1600 measurements |
| Waveforms | Max. 48 hrs full disclosure waveforms |
Battery
| Type | 1 Build-in chargeable Lithium-ion battery |
| Voltage | 11.1 VDC |
| Capacity | 2500 mAh (5000 mAh optional) |
| Run time | 4 hrs(2500 mAh), 8 hrs (5000 mAh) |
| Recharge time | 2500 mAh:4 hrsmaximum (power off ) |
| 4500 mAh | 8 hrsmaximum (power off ) |
Interfacing
| Connectors | 1 AC power connector 1 RJ45 network connector 2 USB 2.0 connector 1 VGA output connector 1 multifunctional output connector (output ECG,nurse call and Defib. Synch. Signals) |
| WiFi Support | Yes, 5G/2.4G dual band |
| Barcode Scanner | Support |
| Network Printer | Support |
Recorder
| Type | Thermal array |
| Speed | 12.5mm/s, 25 mm/s, 50 mm/s |
| Trace | 3 |
Power Requirements
| AC Voltage | 100 to 240 VAC, 50/60Hz |
| Current | 1.5 A |
For detailed specifications refer to the Product Brochure.
