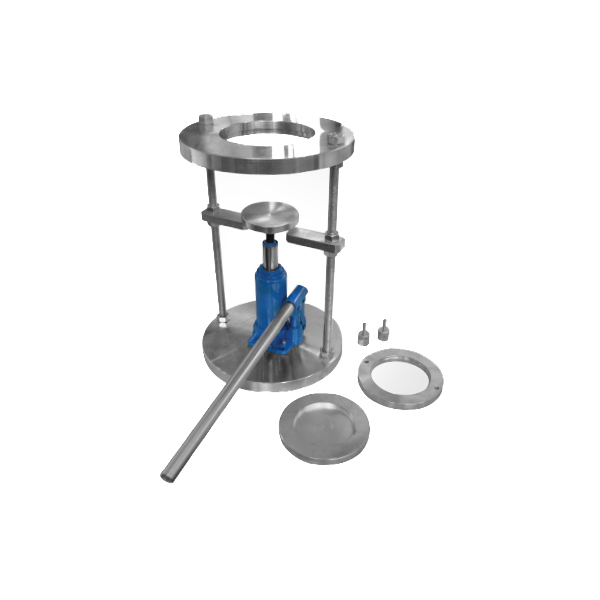

Universal Extruder
Our Price
- Allow the marshall CBR and proctor sample 4”, 6”, 100 mm and 150 mm to be easily removed from the mould.
- Standard: ASTM D698/D1587/D1883, BS 598-107/1377-4/1924-2
Ready to Ship
Description
| Model Number | Parts Description | Qty |
| NL 5036 X / 004 – P 001 | 4” Plunger | 1no. |
| NL 5036 X / 004 – P 002 | 6” Plunger | 1no. |
| NL 5036 X / 004 – P 003 | Proctor / Marshall Retaining Disc | 1no. |
| NL 5036 X / 004 – P 009 | Bottle Hydraulic Jack – 3T | 1no. |
Technical Specifications
Model Number |
NL 5036 X / 004 |
| Dimension (mm) | Ø 280 x 446 (H) |
| Ram Travel | 183 mm – 243 mm |
| Approx. Weight | 28 kg |
For detailed specifications refer to the Product Brochure.
NL Scientific
Universal Extruder
Allow the marshall CBR and proctor sample 4”, 6”, 100 mm and 150 mm to be easily removed from the mould.
