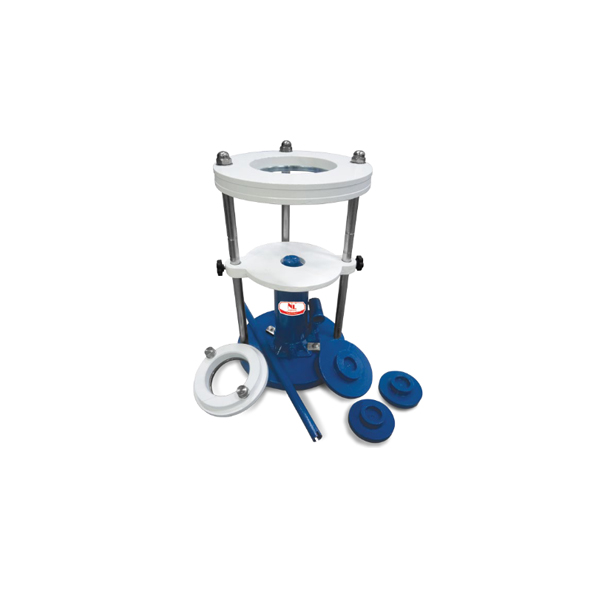

Universal Extruder
Our Price
Allow the marshall CBR and proctor sample 4”, 6”, 100 mm and 150 mm to be easily removed from the mould.
NL 5036 X / 002</span
Email when stock available
Description
Technical Specifications
| Standard | ASTM D698/D1587/D1883,BS 598-107/1377-4/1924-2 |
| Model Number | NL 5036 X / 002 |
| Dimension (mm | Ø 290 x 470 (H) |
| Ram Travel | 130 mm – 180 mm |
| Approx. Weight | 38 kg |
Unit Consists Of:
| Model Number | Parts Description | Qty |
| NL 5036 X / 002 – P 001 | Bottle Hydraulic Jack – 5 tons | 1no. |
| NL 5036 X / 002 – P 002 | Retaining Disc Ø 100 mm Sample | 1no. |
| NL 5036 X / 002 – P 004 | Retaining Disc Ø 97 mm Sample | 1no. |
| NL 5036 X / 002 – P 005 | Retaining Disc Ø 147 mm Sample | 1no. |
| NL 5036 X / 002 – P 006 | Extruder Plunger Ø 97 mm Sample | 1no. |
| NL 5036 X / 002 – P 007 | Extruder Plunger Ø 147 mm Sample | 1no. |
| NL 5036 X / 002 – P 008 | Extruder Plunger Ø 100 mm Sample | 1no. |
For detailed specifications refer to the Product Brochure.
