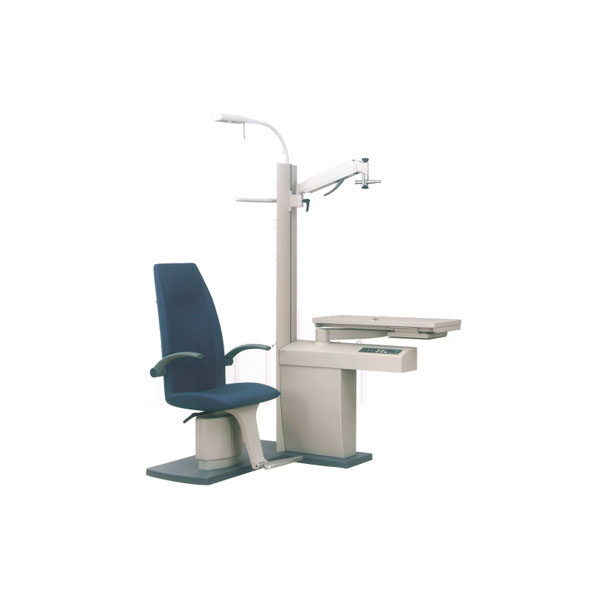

Opthalmic Stand, IS-600 (Right Type)
- Topcon IS-600N instrument Stand is the economical solution for eye-care practice architecture.
- Available in grey or blue
- Available as right or left version
- Compact design
- Dimming of room light
- Dimming of slit lamp illumination
- Safety stopper
This price is inclusive of 5% commercial tax.
Description
Topcon IS-600N instrument Stand is the economical solution for eye-care practice architecture.
Available in grey or blue
Available as right or left version
Compact design
Dimming of room light
Dimming of slit lamp illumination
Safety stopper
The IS-600N main body is in Topcon grey. The OC-63 and the trial lens drawer are available in blue (RAL 5014) and in grey (RAL 7037).
The instrument stand requires just a small installation space of 2.25 ml (.50m x 1.50m), whilst offering the possibility to install 2 instruments on the rotating and sliding tabletop.
The dedicated phoropter- and projector arm (both optional) allow mounting of a manual VT-10 phoropter or an automated
CV-5000/phoropter and Topcon chart projector ACP-8EM
Optional accessories
The IS-600N can be extended with a trial lens drawer, with the VT-61 phoropter arm, with a support for the Topcon ACP-8EM chart projector.
0C-63 Chair
The C0-63 chair for I5-600N is available in blue or grey, The reclinable arm rests offer a convenient use of the chair. The chair can be operated on the main panel on the iS-600N or with an Optional foot switch. Tne 0C-63 can be equiped with a optional foot rest.
Physical & Performance
| Chair | OC-63 |
| Backrest | Fixed Type |
| Armrest | Reclining type |
| Footrest (Optional accessory) | Reclining type |
| Maximum Load | 175 kg |
| Horizontal displacement | No |
| Stand alone connected to a base plate | Yes |
| Possibility to connect footswitch to the chair base plate | Yes |
| Possibility to additional neck rest | Yes |
| Maximum height. | 615 mm |
| Minimum height. | 445 mm |
| Stroke | 170 mm |
| 80ံ rotation with manual Brake | Yes |
| Maximum power consumption | 700 VA |
| Electrical classification | Class 1B |
| Net Weight | 32 kg |
For detailed specifications refer to the Product Brochure.
TOPCON
IS-600
Topcon IS-600N instrument Stand is the economical solution for eye-care practice architecture.
Available in grey or blue
Available as right or left version
Compact design
Dimming of room light
Dimming of slit lamp illumination
Safety stopper
The IS-600N main body is in Topcon grey. The OC-63 and the trial lens drawer are available in blue (RAL 5014) and in grey (RAL 7037).
The instrument stand requires just a small installation space of 2.25 ml (.50m x 1.50m), whilst offering the possibility to install 2 instruments on the rotating and sliding tabletop.
The dedicated phoropter- and projector arm (both optional) allow mounting of a manual VT-10 phoropter or an automated
CV-5000/phoropter and Topcon chart projector ACP-8EM
