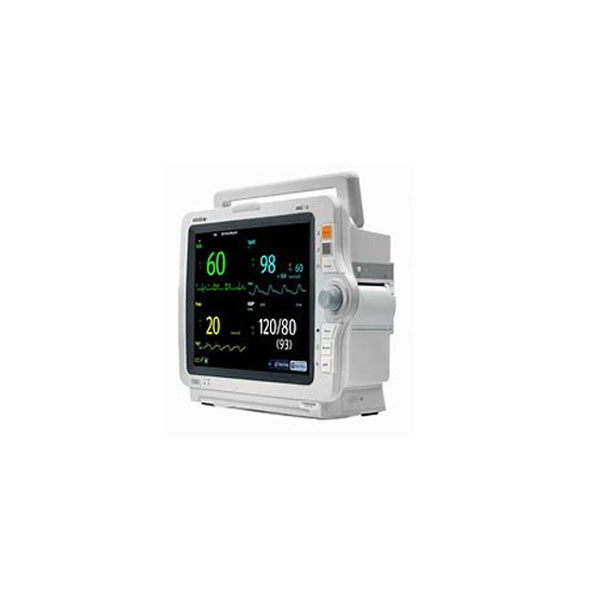

Monitor, Pt, 12.1, Touch-screen, iMEC-12
- Choice of 8.4” (iMEC8) or 12.1″ (iMEC12) touch-control colour LCD high resolution display provides optimal visualisation of patient data.
- Standard features include multiple waveform or big number displays, 3 or 5-lead ECG with ST and Arrhythmia, Respiration, NIBP, SpO2 and Temperature.
- Many options available including Nellcor® SpO2, 3-trace recorder and vehicle power option (iMEC8 only).
- User configuration to set up and save default settings for each patient size: Adult, Paediatric and Neonate.
- Full graphic and list trends of all monitored parameters
- Up to 48-hours Full Disclosure.
- Connect to the Mindray HyperVisor Central Station via wired network or WLAN.
- HL7 enabled with EMR and ADT packages.
- A lightweight and compact design provides ease of portability, allowing you to move iMEC effortlessly from one place to the next.
- Ergonomically designed fold-flat handle provides maximum flexibility and easy handling.
- Built-in Power Supply for direct AC connection allows for convenient transport from one location to the next.
- Optional rolling stand, with ample storage space and sturdy design, provides a convenient means of performing monitoring on the go. Or opt for a wall mount if iMEC is intended to be static.
This price is inclusive of 5% commercial tax.
Description
Exceptional Design and Cost-Effective Monitoring
“No-fan design” allows for a quiet care environment. Preventing dust collection and reduces the risk of airborne contamination.
Weighing from 2.6Kg to 3.6Kg with an integral carry-handle, the lightweight iMEC is ideal as a portable monitor.
The user-configurable touch screen is available in 8.4”, 10.4” or 12.1” sizes, with 800 x 600 high-resolution and up to 8 traces.
Ergonomic buttons enable quick access to commonly used functions, such as alarm silence, alarm pause and start NIBP.
Quick keys help caregivers to rapidly access frequently used functions such as trend review, and alarm settings and useful display modes, including large fonts and mini trends.
The integral 3-trace thermal recorder provides waveform and data reports for diagnostic support.
Powerful data storage for up to 48 hours full-disclosure, 120 hours of tabular and graphic trends, 1,000 NIBP measurements and 100 alarm events.
Patient Care in One Touch
Through its simple and intuitive touch screen display, iMEC offers instant access to all functions and allows you to monitor your patients in a quicker and more convenient way.
Customizable hot keys provide shortcuts to the most frequently used functions, saving you time for patient care
Quick and Easy Monitoring
A compact and light weight design make iMEC easy to carry while optional rolling-stand and bedrail mounting allow for convenient in-hospital transport. iMEC’s user-friendly interface is intuitive and easy to use.
Auto detectable 3 or 5 lead ECG and self-adjusting ECG, SpO waveforms allow you to spend more time on 2 patient care and less time on operating the monitor.
The centralized alarm system enables you to quickly review and modify alarm settings.
The logical review of alarms, events, trends and full-disclosure data helps you to quickly and accurately assess a patient’s situation.
With LAN and Wi-Fi capability, your iMEC can communicate with the HyperVisor VI Central Monitoring System both from the bedside and during transport.
Optimized Structural Design – Simplifying Upgrades and Maintenance
The iMEC is designed to simplify maintenance and make it easy to perform future upgrades.
Future software upgrades can be performed on one IMEC or multiple iMECs simultaneously through a standard RJ45 port.
The USB port allows you to transfer patient data to a PC and to copy your personalized user settings to different iMECs.
The maintenance-free Li-ion battery offers up to 4 hours continuous monitoring.
Technical Specifications
| Monitor size: | 360mm x273 mm x 122mm |
| Weight: | 3.2kg, Standard parameters configuration, including a lithium battery and a recorder; 3.6kg, standard and optional parameters configuration, including touchscreen, a lithium battery and a recorder |
| Display | 12.1” color LED backlight LCD |
| Resolution | 800 x 600 pixels |
| Waveforms | up to 8 |
| External display | 1 display through VGA |
| Heart Rate Range: | Adu: 15 to 300 bpm Ped: 15 to 350 bpm Neo: 15 to 350 bpm |
For detailed specifications refer to the Product Brochure.
MINDRAY MONITOR
Monitor, 12.1, iMEC-12
An innovative patient monitor with ‘green’ credentials, Mindray’s iMEC helps you to reduce your hospital’s ecological footprint and to contribute to a sustainable care environment. Based on its optimized hardware design, iMEC achieves a compared to conventional patient monitors. This allows for an improved battery life and a fan-less design, providing cleaner and quieter performance. It also offers a robust but thin and lightweight structure, making iMEC very easy to carry.
The touch screen allows you to operate iMEC in a quick and convenient way.
With Wi-Fi capability, iMEC integrates seamlessly with Mindray’s Hypervisor VI Central Monitoring System.
This provides you with convenient access to real time patient information – even during transport.
Its preconfigured measurement parameters meet all standard clinical requirements and allow iMEC to operate in various hospital settings, including Emergency Rooms, Recovery Units, General Wards and Outpatient areas.
