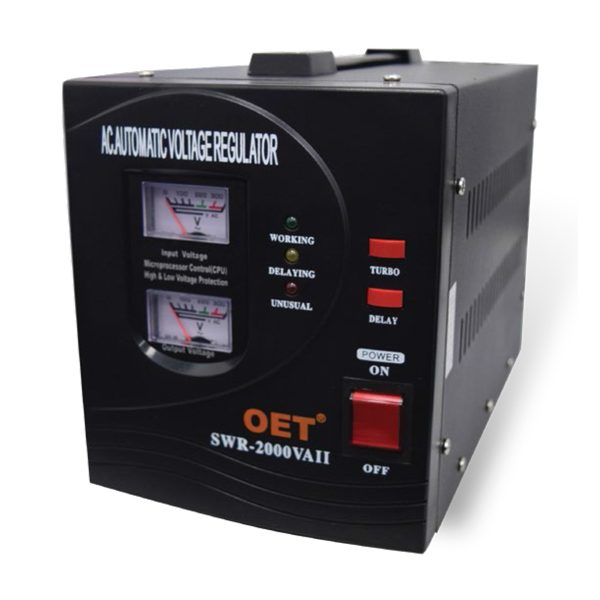

AC Automatic Voltage Regulator
Availablity: in stock
SKU: NL70.75X0.01 & 02
- Microprocessor Control
- Wide Range Voltage Regulation
- Technology: Classic Serius. EL Transformer. Relay Type
- Display : Input and Output Voltage Meter Display
- Automatically executes protection when finished, goes off.
- High Voltage Protection
- Low Voltage Protection
- Overload Protection
- High Temperature Protection
- Circuit Protection : Circuit Breaker
Description
- Microprocessor Control (CPU)
- Wide Range Voltage Regulation
- Automatically Executes Protection, When Protection Finished, Goes Off
- High Voltage Protection : Yes
- Low Voltage Protection : Yes
- Overload Protection : Yes
- Circuit Protection : Circuit Breaker
- High Temperature Protection : Yes
Specifications
Input :140 – 280V AC
Output : 230V AC
Frequency : 50/60Hz
Output Accuracy : ±8%
Delay Output Time 6 Secs / 120 secs.
Power : 2 KVA, 5KVA
Operating Temperature : 0 40°C
Storage Temperature : 15 45°C
Operating Relative Humidity : 10%RH . Non-cendensing.
Technical Specifications:
Standard | CE, EN60335, EN50366 | CE, EN60335, EN50366 |
Model Number | NL 7075 X / 001 | NL 7075 X / 002 |
Alternate Code | SWR-2000 VA | SWR-5000 VA |
Dimension(mm) | 265(L) X 150(W) X 80(H) | 390(L) X 215(W) X 260(H) |
Approx. Weight | 6.7kg | 16kg |

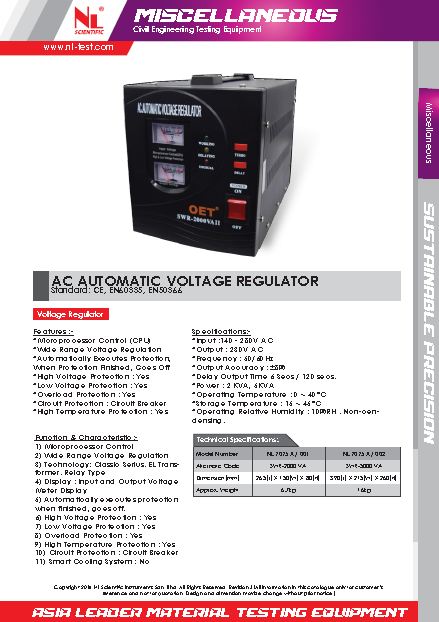

For detailed specifications refer to the Product Brochure.
