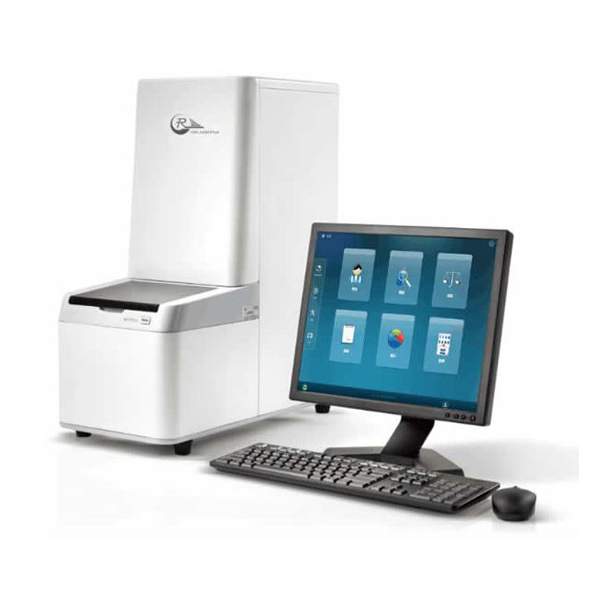

TDR-300B Plus, Microorganism Analysis System ,Microbiology Analyzer
categories:
Laboratory Products, Microbiology, Medical Products, Selling Products
Availablity: in stock
SKU: TDR3.00B
The TDR-300B Plus Microorganism System provides accurate identification and susceptibility results for most clinical important Enterobactereia, Non-Fermentative, Staphylococcus, Streptococcus, Enterococcus, Fastidious bacteria and yeast-like fungi, as well as vibrionaceae, corneybacterium and anaerobes.
Description
Better identification
- Classic test principle: colorimetry
- 10 categories of test cards cover the vast majority of clinical pathogenic bacteria and fungi
- In case the identification probability is low, flag unusual test result and list differentiate test
Efficient drug guidance
- Susceptibility testing principle: turbidimetry
- Microdilution method provide MIC value and S.I.R report
- Custom service: self-definable antibiotics combination
- Timely database update in accordance with the latest CLSI regulations
- Abnormal susceptibility testing results warning and bacteria natural drug-resistance warning
- Advanced expert system offersbetter result interpretation
Easy surveillance
- Multi-drug resistance monitoring: MRS, MRSA, β-lac, VRE, VRSA, HLAR etc
- Seamless linkage with WHONET, ensuring easier data statistics
More function
- Capable to communicate with LIS/HIS
- User-definable reporting items and printing mode
- Patient data backup and recovery
Technical Specifications
| Identification range | 10 categories of test cards covering Enterobacteriaceae, Micrococcaceae, Streptococcus,Yeast-like fungi, Vibrionaceae, Non-fermentative bacteria, Bacillus, Coryneformbacteria, Neisseria, Haemophilus and other fastidious bacteria, Anaerobesetc |
| Principles | Identification: colorimetry Antimicrobial susceptibility testing: turbidimetry |
| Wavelength | Red(R), Green(G) and Blue(B) |
| Printer | External printer |
| Interface | RS-232, support LIS/HIS Working environment Temperature: 10°C~30°C Relative Humidity: 35%~80%, without condensation |
| Atmospheric pressure | 76kPa~106kPa |
| Transportation and storage environment | Temperature: 0°C~40°C Relative Humidity: 30%~80%, without condensation |
| Power supply | AC100~240V, 50/60Hz |
| Fuse | 5mm(dia.)×20mm, T(Timelag) 250V/2AL |
| Input power | No greater than 100VA |
| Safety classification | Electric shock prevention: Ⅰ; Overvoltage category: Ⅱ; Pollutiondegree: 2 |
| Dimension | 510mm×270mm×645mm(D×W×H) |
| Weight | 22Kg |
For detailed specifications refer to the Product Brochure.
Mindray
TDR-300B Microbiology Analyzer
- Bacteria growth determined using colorimetry-matrix technology and turbidity development
- Combo ID&AST test card/AST test card/ID test card
- Multidrug-resistance bacteria monitoring, including ESBL, CRE, MRSA, VRSA, VRE, PRSP, etc.
