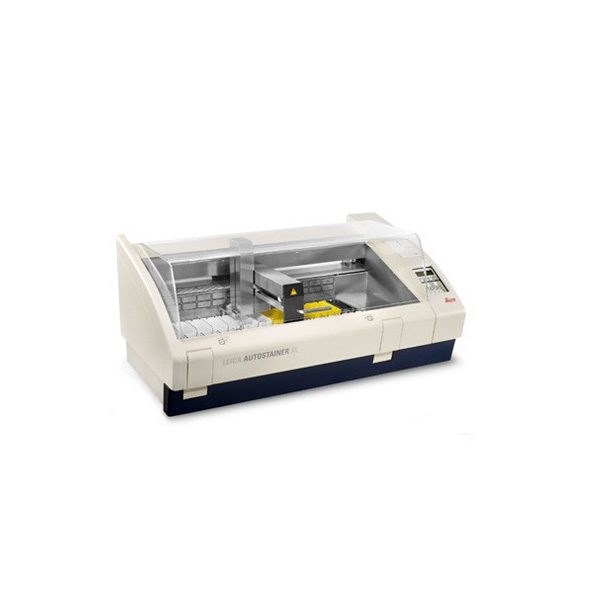

ST5010 ,AutoStainer XL ,Automatic Stainer
- The proven Autostainer XL continues to provide reproducible, consistent, high-quality staining and increased workload throughput.
- Plus, combine it with the CV5030 Glass Coverslipper to create a workstation that eliminates the manual handling of slide racks between staining and coverslipping.
- The flexibility of open consumables and reagents along with the option to use validated Surgipath reagents, consumables and protocols provide superior staining and coverslipping quality.
Description
Accommodate specific laboratory needs
Ability to store and run up to 15 different, user defined staining protocols offers increased flexibility to accommodate individual staining procedures.
High specimen throughput
High specimen throughput supports laboratory workflows with up to 11 racks of 30 slides at a time.
Flexible staining/ coverslipping solution
Can be used stand-alone or integrated with the Leica CV5030 Glass Coverslipper to create a ‘walk-away’ staining/coverslipping workstation. Upgrade at anytime to match your laboratory’s specific needs.
Easy to use, convenient operation
Reliable and simple software provides easy programming and one-touch operation to ensure runs start quickly and operator errors are minimized.
Compact, space saving
Small foot-print and compact design with integrated slide drying station and up to 5 water stations help to save space in the laboratory, but not without losing the flexibility to carry out various protocols simultaneously.
Product Specifications
LEICA ST5010 AUTOSTAINER XL
| Dimensions (W x D x H) | 109 cm x 67 cm x 51 cm |
| Weight | 65 kg |
| Specimen slide throughput | at least 200 specimen slides per hour |
| Loading capacity | 11 slide racks |
| Slide rack capacity | 30 specimen slides |
| Total number of stations | 26 |
| Total number of reagent stations | at least 18 |
| Reagent container volume | 450 mL |
For detailed specifications refer to the Product Brochure.

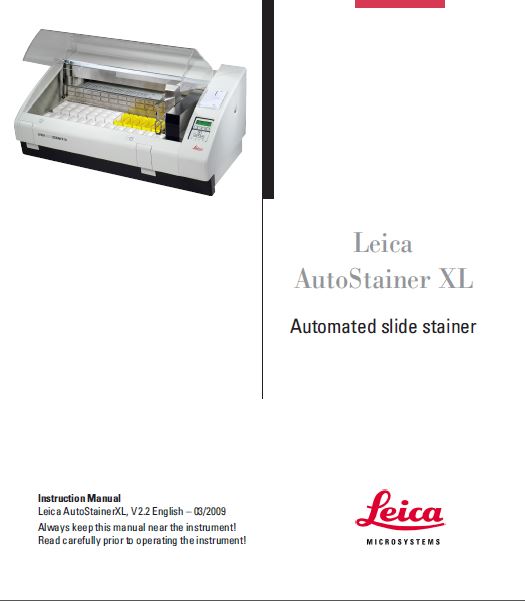

Leica
Autostainer XL (ST5010)
AutoStainer XL offers some unique features not available in other stainers and these are explained in subsequent sections. Firstly, slide racks are loaded and unloaded by means of drawer, not by opening the lid. If the instrument is free to accept a rack for staining the Load LED will be on. After loading, the Load key must be pressed to inform the instrument to begin processing. Similarly, if a rack is finished staining in the Exit drawer the Exit LED will be on.
