in stock
Our Price
- Touch-screen, 7.8″ large color LCD display
- Opaque lid to prevent stray light
- Built-in thermal recorder, optional external printer
- Non-volatile memory stores up to 20,000 results
- Multiple Curve-fitting options
- Variable time and speed shaking modes
- Fully automatic bi-chromatic optical system
- Extensive report with patient information
- Long life lamp with lamp saver feature
- Powerful data management software(optional)
Description
- 7.8″ touch-screen with touch pen and pop-up keypad
- Variable time and speed shaking modes
- Powerful data management software for computer installation (optional)
- High-capacity memory stores up to 20,000 results
- Built-in thermal printer
- RS232 for external PC control, 2 USB ports for external mouse, keyboard and printer
Technical Specifications:
| Detection method | Absorbance |
| Microplate types | 96/48-well plate |
| Reading speed | 5 sec single wavelength, 12 sec double wavelength |
| Wavelength range | 400~700nm |
| Measurement system | 8-channel optical system |
| Light source | Halogen-tungsten |
| Reading range | 0.001~3.500 Abs |
| Measurement range | 0.001~2.500 Abs |
| Photometric accuracy | 0~0.2 A 0.001 Abs |
| Wavelength accuracy | ±2nm |
| Repeatability | < 1% |
| Stability | < 0.005 Abs / 10 min |
| Linearity | 0~1.5 A < 1.0% |
| Filters | 405nm, 450nm, 492nm, 630nm |
| Connection port | 1 x RS232, 2 x USB |
| Shaking | variable speed and time shaking modes |
| Input | Touch screen |
| Display | Large color LCD display |
| Size | 437mm x 332mm x174mm |
| Weight | 8.5 Kg |
For detailed specifications refer to the Product Brochure.

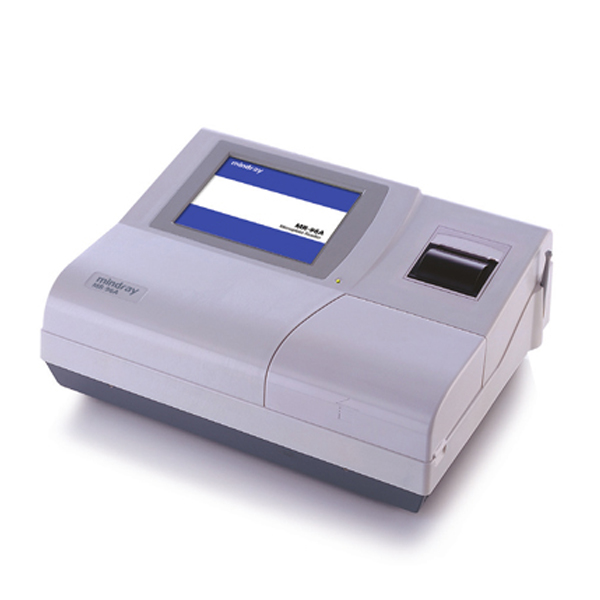

Mindray
MR-96A
7.8″ touch-screen with touch pen and pop-up keypad
Variable time and speed shaking modes
Powerful data management software for computer installation (optional)
