Antenna, CORS, CR-G5-C W/DOME, KIT
- Competitive high-end Geodetic Antenna
- Topcon’s TA-5 vertical convex dipole antenna
element for full spectrum GNSS signal tracking - Topcon designed choke ring groundplane
- Environmentally robust and sealed
- Improved phase center stability in vertical over expanded GNSS frequency band. Improved low elevated satellites tracking.
This price is inclusive of 5% commercial tax.
Description
Next Generation Full Wave Geodatic Antenna Anti-Snow Spherical Dome
The CR-G5 is a newly designed choke ring antenna based on Topcon’s new TA-5 full spectrum GNSS antenna element. The TA-5 antenna element utilizes an array of vertical convex dipoles. This new antenna provides Full Wave tracking technology for existing and future GNSS signals. The antenna addresses the evolving requirements for reference networks and infrastructure monitoring applications.
Topcon TotalCare
This online resource comes with real live people ready to help. Get expert training from Topcon University’s large collection of online materials, and
expert help directly from Topcon Technical Support.
Access software and firmware updates, current publications, and guidance from the experts at Topcon all right from your computer or mobile device.
Dimensions
Antenna without Anti-snow Dome | 380 mm (D) x 155.5 mm (H) |
With Topcon Anti-snow Spherical Dome | 380 mm (D) x 292 mm (H) |
With SCIGN Anti-snow Short Dome | 415 mm (D) x 287 mm (H) |
Weight
Antenna | 4.9 kg |
Topcon Anti-snow Spherical Dome | 1.1 kg |
Antenna w/ Topcon Anti-snow Spherical Dome | 6 kg |
Power
Input Voltage | +3 to +12 VDC |
Current Consumption | 100 mA (typical) |
Connector | N-type |
Environmental
MIL-STD-810G Temperature |
(Methods 501.5, 502.5) |
Operating Range | -50°C to +70°C |
Storage Range | -55°C to +85°C |
Humidity | 95%, Method 507.5 |
Salt Fog, 5% | Method 509.4 |
Vibration | Method 514.6, Broad band noise (random vibration), along each of 3 axes, Category 4, table 514.6C-IV |
Mechanical Shock | Method 516.6, along each of 3 axes. Procedure I – Functional Shock, Table 516.6-I, Fig. 516.6-8, accelerative forces up to 40g |
IP Rating | IEC 60529 IP67 |
Drop Test | Repeated drops from the height of 1 m on concrete surface.All sides – top, bottom & border (with Dome) |
RoHS Compliant | Yes |
For detailed specifications refer to the Product Brochure.
TOPCON

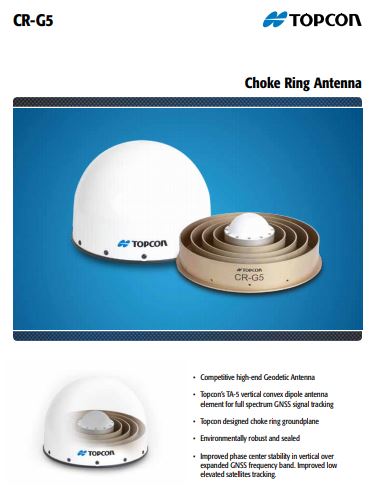

CR-G5 Choke Ring
The CR-G5 is a newly designed choke ring antenna based on Topcon’s new TA-5 full spectrum GNSS antenna element. The TA-5 antenna element utilizes an array of vertical convex dipoles. This new antenna provides Full Wave tracking technology for existing and future GNSS signals. The antenna addresses the evolving requirements for reference networks and infrastructure monitoring applications
